Channels
U and C channel from light gauge to plate
Press Brake Forming
Sheet Bending.
Crisp bends, predictable parts, every run.
Forming capability
Forming capability, end to end.
Overview
Built for the way your parts are built.
CNC press brake forming with offline programming and a deep tooling library. Complex parts produced with repeatable accuracy at any volume.
- CNC press brake forming with offline programming
- Extensive tooling library for complex geometries
- Bend allowance calculated from flat-pattern models
- Prototype through production volumes
On the floor
TRUMPF TruBend 5130 + ToolMaster Bend
130-ton CNC press brake with 6-axis backgauge, in-cycle angle measurement, and automated tool changing.
- ToolMaster Bend automatic tool changer: 60 upper / 48 lower tool magazine, tool swaps in seconds — no walk-time, no searching
- ACB Laser non-contact angle measurement for first-bend accuracy on every part
- Six-axis CNC backgauge for complex geometries in a single setup
- Thickness Controlled Bending compensates for sheet-to-sheet material variation
- On-Demand Servo Drive runs quiet and energy-efficient through long production runs
Specifications
- Press force
- 1,300 kN (130 tons)
- Max bending length
- 3,230 mm
- Y-axis speed
- Up to 25 mm/s
- Open height
- 385 mm (615 mm extended)
- Backgauge
- 6 CNC axes
- Tool magazine
- 60 upper / 48 lower
- Max setup length
- 4.4 m (ToolMaster Bend)
- Angle measurement
- ACB Laser + Wireless
Manufacturer specifications. Actual capabilities may vary by material and configuration.
Quality
Every part traceable. Every process documented.
Operating under our AS9100 and ISO 9001 quality systems — material certs, inspection records, and revision control on every job.
Our credentialsOther capabilities
Explore the rest of the shop.
Precision Tube Processing
Laser Tube Cutting
Learn more ›
Flat Stock, Flawless Edges
Laser Sheet Cutting
Learn more ›

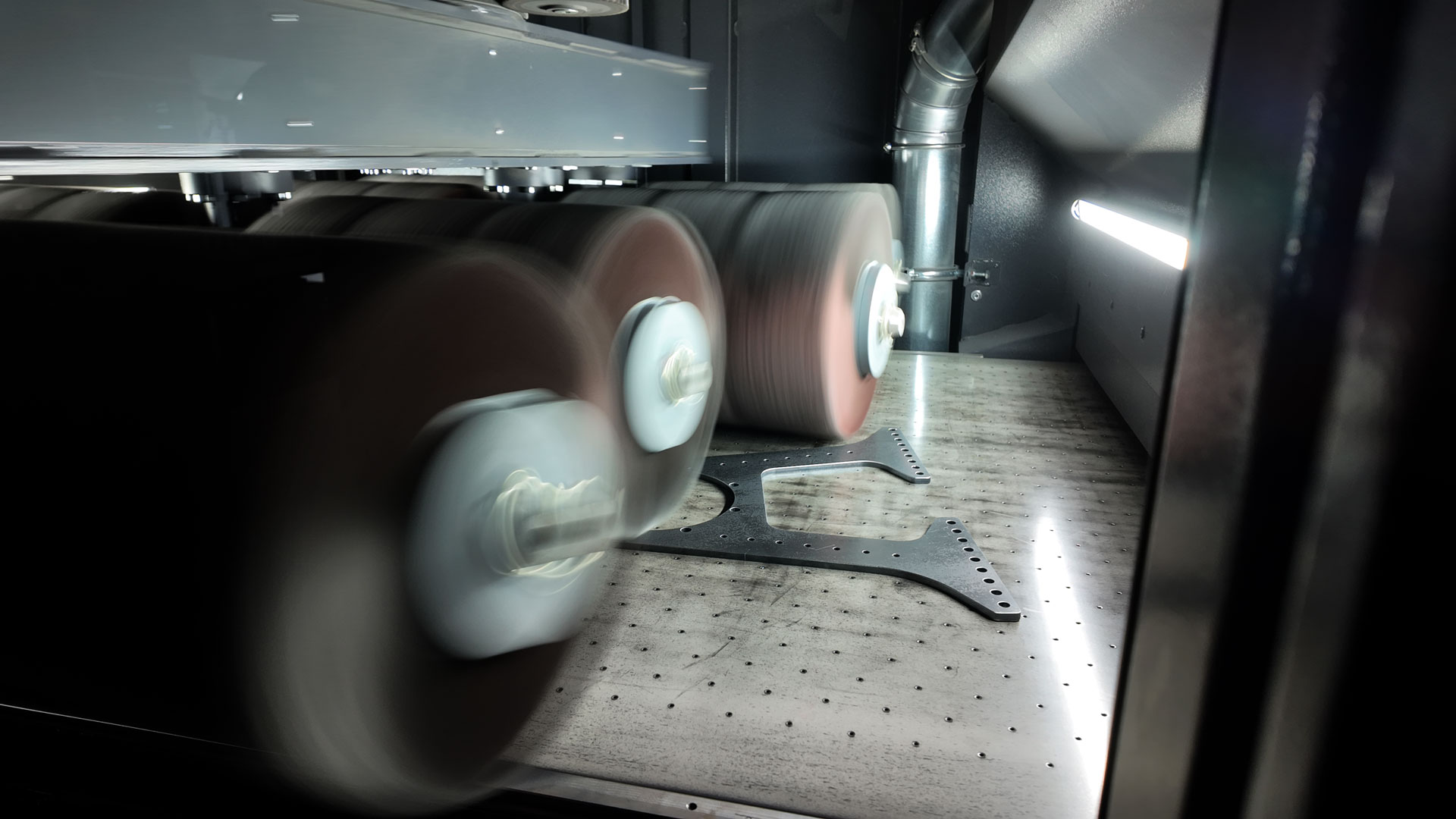

Surface, Refined
